Product introduction

HD-CL-012P experimental bench is a multi-functional professional experimental equipment developed by our company for gear transmission and related courses in universities and research institutes.

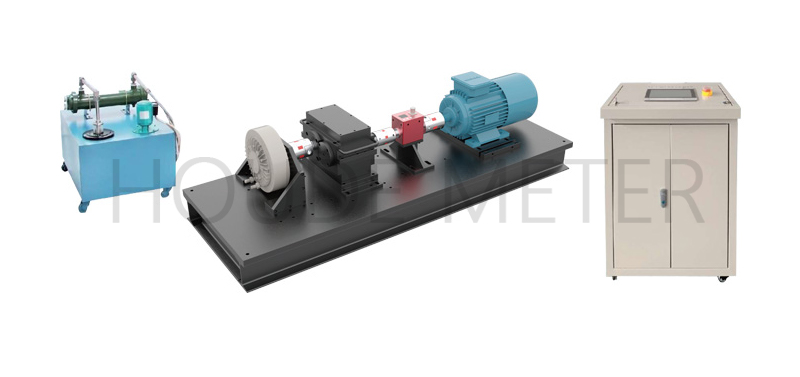

The experimental platform is composed of platform bottom plate, variable frequency motor, torque speed sensor, parallel shaft fault simulation gear box, loader, coupling, PLC intelligent control cabinet, circulation cooling system, etc.

The gear box test bench has the characteristics of simple structure, convenient disassembly, easy operation and stable performance. This device can be flexibly configured with various sensors to analyze the fault characteristics of many common rotating machinery faults. It is used together with the data acquisition system developed by our company to form a multi-purpose and comprehensive experimental system platform, which provides a good experimental analysis environment for researchers engaged in gear transmission and related courses.

The experiment can be completed

◆ Torque loading experiment

◆ Speed test (speed up, speed down, speed stability, etc.)

◆ Motor misalignment simulation experiment (Angle, parallel)

◆ Parallel shaft gearbox low speed shaft gear failure test,Fault type: broken tooth, pitting, wear, crack

◆ Parallel shaft gearbox high-speed shaft gear failure test,Fault type: broken tooth, pitting, wear, crack

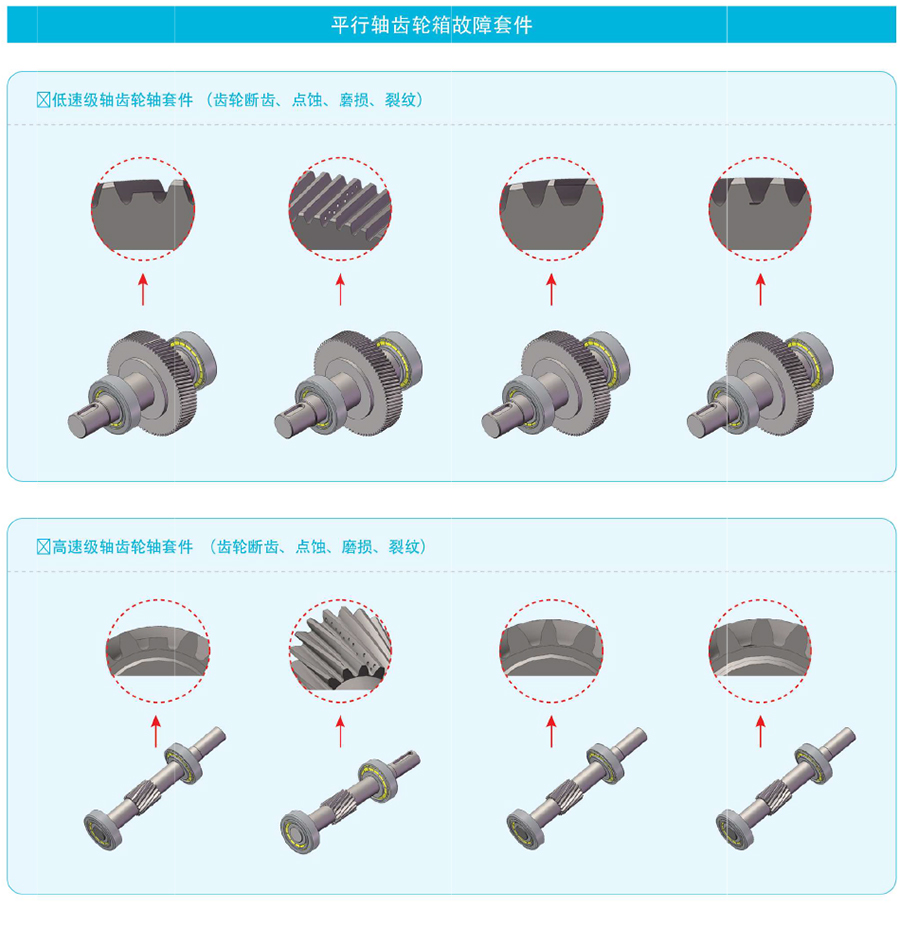

Parallel shaft gearbox failure kit
